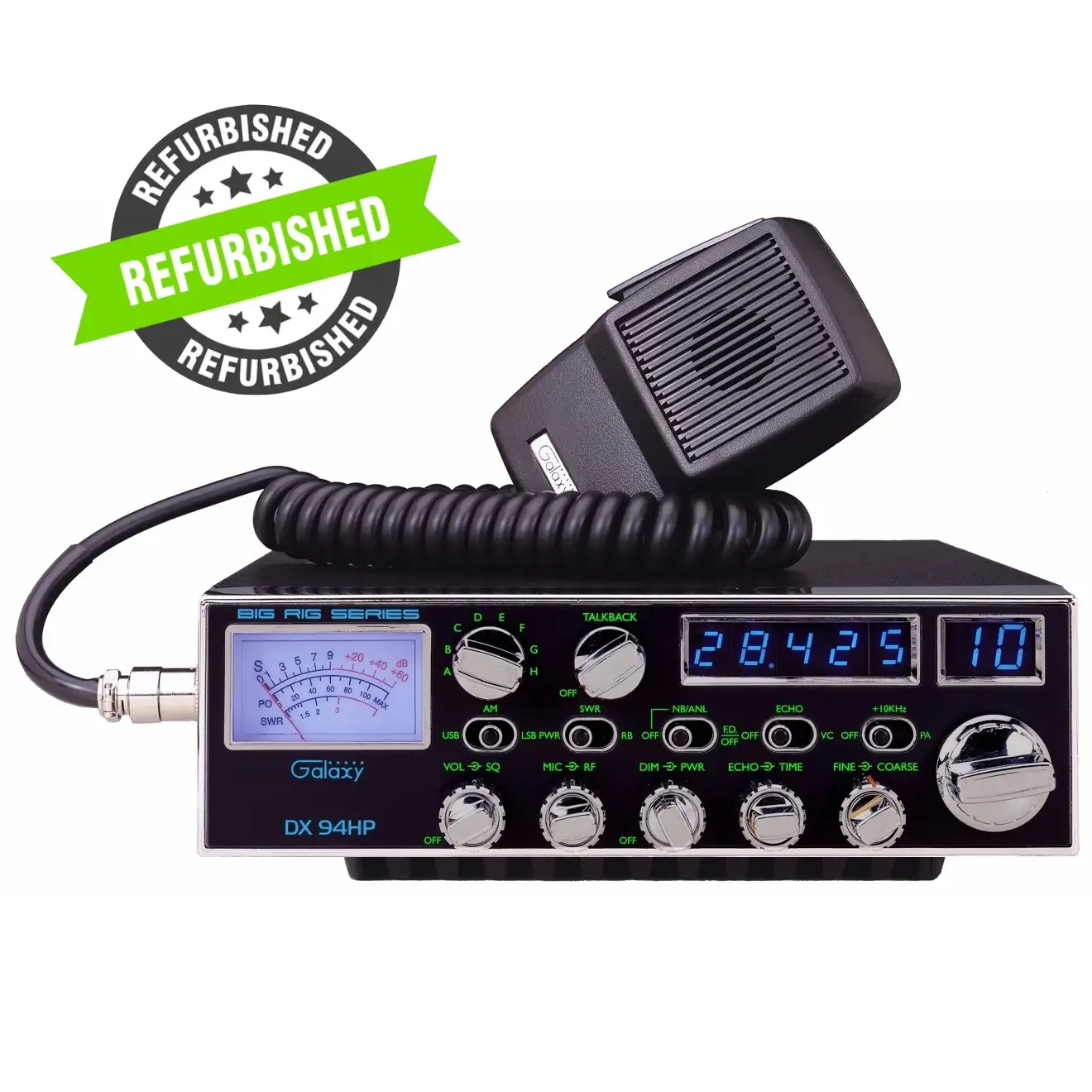

Say goodbye to the Galaxy 99, say hello to the new Galaxy DX94HP 10-meter HAM radio. The new Galaxy DX94HP is the model that has replaced the age-old DX99V for which everyone had a thing for, at least at one point or another. As they say, out with the old in with the new.
The Galaxy DX94HP radio for sale offers many improvements over the DX99V the most noteworthy of which is a massive increase in modulated output power, up to 100 watts in fact. The DX94HP 10-meter HAM radio utilizes FOUR, you heard it, 4x IRF520 MOSFET final transistors yielding a whopping output power of 100 watts, that's over 60 watts more than the DX99V!
In effort to match a progressive market Galaxy has opted to continue with the all blue LED system which is fast becoming the standard. Another big plus is the EL faceplate, which allows for faceplate illumination with a variable control over the brightness level.
Combine these new features with the time honored standards of the 99 like the Galaxy large meter display, (blue) frequency counter, Single Sideband, Echo, Voice Changer, and roger beep. The Galaxy DX94HP radio for sale is sure to make its mark.
R-DX94HP Features
- ModesAM/USB/LSB
- Additional Features
- 100 watt maximum ouptut power from four IRF520 MOSFETs
- Maximum current is 25 amps
- Heavy-duty DC power cord
- Low profile bottom heatsink
- Blue LEDs for frequency and channel readouts
- Dual blue LEDs light the signature Galaxy large meter
- Starlight faceplate illumination
- Meter scales indicating power output, SWR and incoming signal strength
- Standard clarifier circuit/control
- AM/USB/LSB/PA operating modes
- Variable power output control
- Automatic SWR circuit
- Variable dimmer control for LEDs, meter lamp and faceplate lettering
- On/off frequency display
- Variable talkback circuit with on/off control
- Echo and Voice changer, no robot voice
R-DX94HP Technical Specifications
Power Output | 100+ Watts PeP
|
---|
Modes | AM / USB / LSB
|
---|
Frequency Range | 10 Meter 28~29 MHz
|
---|
Length | 10 1/8" from SO-239 to bezel
|
---|
Length | 11 1/8" from SO-239 to control knobs
|
---|
Width | 7 7/8"
|
---|
Height | 2 7/8"
|
---|
Current Draw | 20 Amp
|
---|
Fuse Size | 25 Amp
|
---|
Microphone Pin-Out | Standard 4-Pin
|
---|
Power Connection | 6-Pin |
---|
